Setting Up HorseGuard Bi-Polar Fence




HorseGuard Bi-Polar :
heavy duty fence tape



Download the printable PDF file Pages: 1 2 3

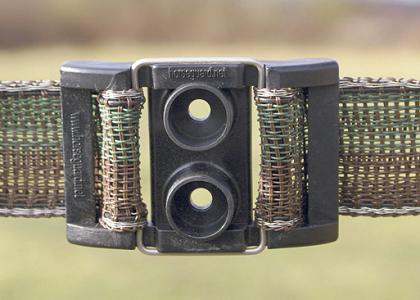

To improve the efficienty of the Bi-Polar tape we have designed a new tensioner: the #9bl that does it all!
It's a tensioner on the Control Tower that locks in the electric connections.
It's a corner insulator, a 3 way-tensioner, and a splicer.


Control Tower Tensioner

A corner insulator

A 3 way connection

A splicer
The new tensioner #9bl does it all !



3 strands
2 strands
Measure and draw a mark for the placement of the middle tape,
report the same mark on all the posts to install
tensioners and insulators at the same level .




On line posts , secure all insulators #8br with 2 wood screws.Do not insert the thumbscrew yet the tape will be set at the very end of the installation.
