HORSEGUARD Fence Manual
Page 24
Prev. View Cart

All the Basic Items for Mono-polar tape fence

Index Next

Mono-Polar Tapes

The mono-Polar and the Bi-Polar fence tapes are made of
29 totally UV resistant polyethylene threads,
2 stout bumpers and a combination of 10
wires interwoven into the top and bottom bumpers at the tape edges.
Each tape has a total of 10 stainless steel wires. Our stainless steel wires sizes are
26 Gauge/ 0.404mm. The larger the wire, the more electricity it will carry!
This combination has been added to provide cut protection and prevent
elongation, making it a stiffer tape, increasing strength,
effectiveness and protecting against wear.
Long before, when we invented the tape we had 15 wires but much thinner ones.
Our best counterfeiters copy that ribbon with too thin wires now.


Our tapes are top quality wide and sturdy, made in Europe, not in China.

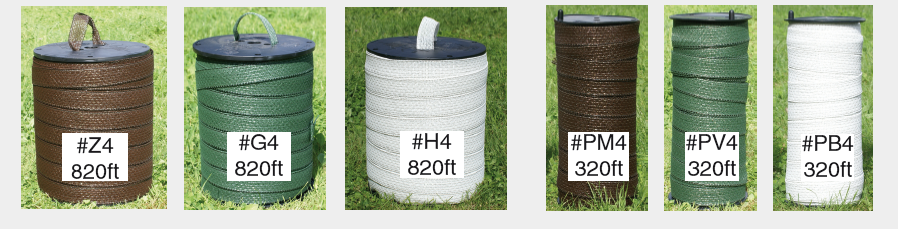

Z4Brown tape 1.5''x820ft
Brown
140.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
G4Green tape 1.5''x820ft
Green
140.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
H4White tape 1.5''x820 ft
White
140.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PM4Brown tape 1.5''x320ft
Brown
70.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PV4Green tape 1.5''x320ft
Green
70.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PB4White tape 1.5''x320 ft
White
70.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart


HorseGuard Insulators

Our insulators are easy and fast to set up, one per post, per strand
To resist perfectly to the mechanical friction due to the force of the winds the electric tape must tightly be blocked into our insulators, firmly squeezed between the rounded caps that will protect the stainless steel threads from being damaged over time.

The design of the #8 was inspired by the tuning peg that tightens the strings on a violin, it is easy and fast to install . Just turn the 2 pegs and the tape will be secured into place !
Be aware of some insulators designs that can pinch the tape and cut it over time and your horse will know before you that the zapping has become very weak!that. Be aware of some insulators designs that can pinch the tape and cut it overtime and your horses will know before you that the zapping has become weak!.

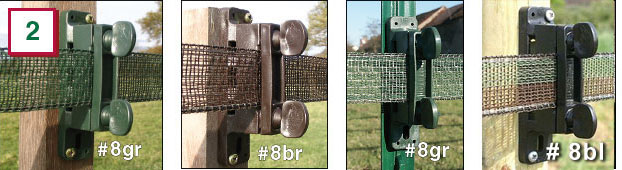

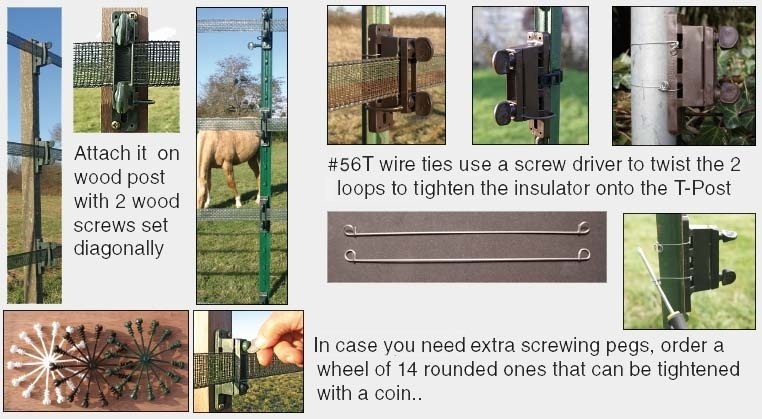

The Electric Tape fence post insulators #8bl, 8gr, 8br: You will need one per post per strand. Made out of flexible plastic and designed to protect the tape from unnecessary wear, the line post insulators can be screwed into wood posts, strapped to t-posts, or slide over 1/2" fiberglass fence stakes (#7A). As with all of the HorseGuard parts, the insulators have been designed exclusively for HorseGuard tape.
8brLine Post Insulator - Brown
one per strand/per post 0.75 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
8grLine Post Insulator - Green
one per strand/per post 0.75 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
8blLine Post Insulator - Black
Black
(By the unit)
0.75 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

HorseGuard insulators Attachments

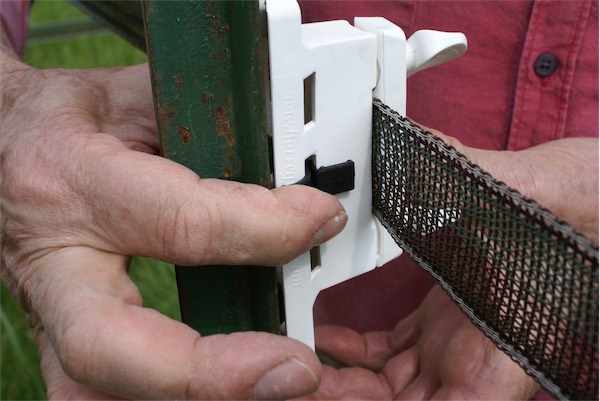

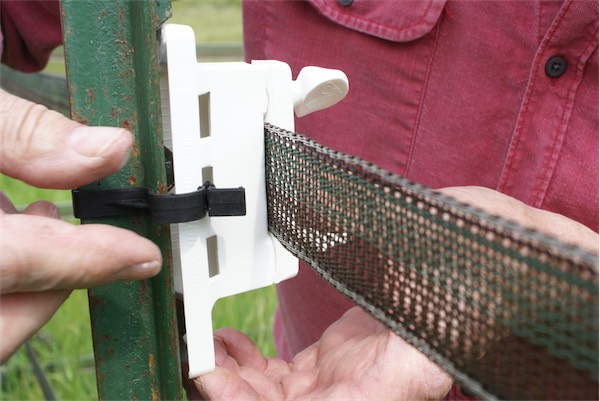

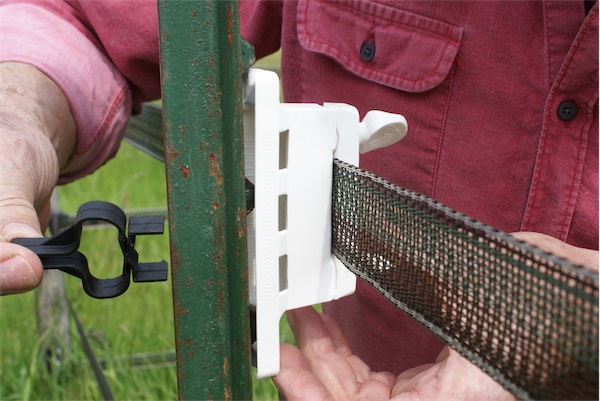

The CLIP-CLAMP #CLIPCLAMP

Clip-Clamp #CLIPCLAMP Clip-Clamp #CLIPCLAMP Clip-Clamp #CLIPCLAMP

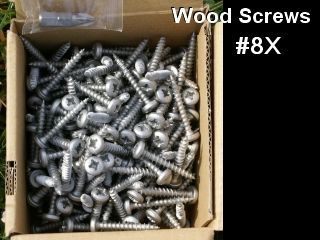

Wood Screws #8X

#LB50 lag bolts <br> #8X wood screws


Wire Ties / Polyamide Straps

#25T Twister for #56T wire ties #56B Polyamid Straps
CLIPCLAMPT-Post Clip-Clamp/100
for T-Posts 17.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
56BPolyamide straps(100)
for metal T posts 17.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
56TS.Steel wire ties(100)
14.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PEGwhPeg Screws White /14
14 on a wheel 3.29 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PEGbrPeg Screws Brown /14
14 on a wheel 3.29 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PEGgrPeg Screws Green /14
14 on a wheel 3.29 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

8X200 wood Screws
for wood posts 8.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
25TTwister for looped wire ties
2.00 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
LB50 50 lagbolts 2 1/2'' M6x60
9.59 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
