HORSEGUARD Fence Manual
Page 39
Prev. View Cart

ELECTRICAL CONNECTIONS FOR BI-POLAR TAPE FOR #BP32 AND #BP37

Index Next

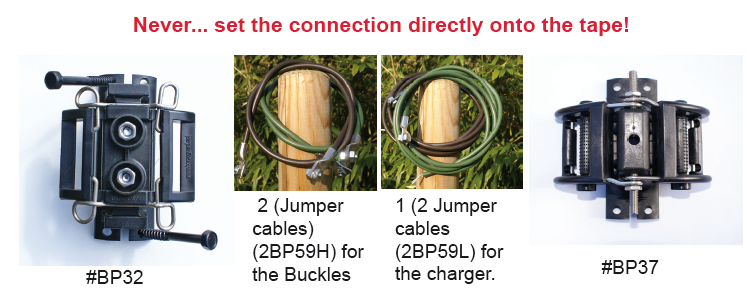

Never... set the connection directly onto the tape!

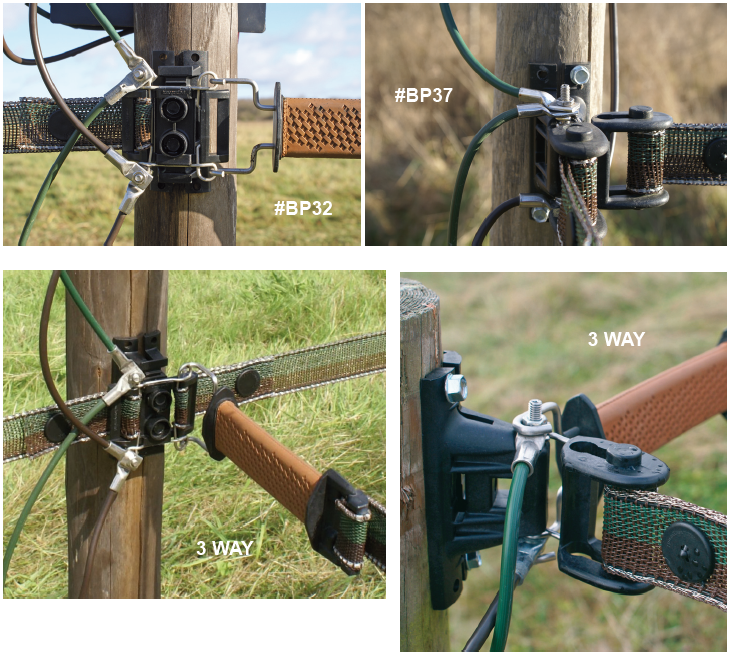

On the starter post, for 2 strands, use 2 pairs of bi-polar jumper cables (#2BP59H) respecting the color code, "green up brown down" to connect them to each strands
through the buckles tensioners (#BP32 or #BP37).
The Bi-Polar charger connecting cable (#2BP59L) brings the power
from the charger to the buckle tensioner on top of the post (#BP32 or #BP37).
BP32Bi-Polar Tensioner
Black
lag bolts included
8.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
BP37Bi-Polar Tensioner (2 buckles included)
Black
(New tensioner) 2 lag bolts included
11.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
2BP59H2 Bi-Polar jumper cables (2ft)+lugs
(to connect strands together) 13.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
2BP59L2 Bi-Polar charger jumper cables (5ft)+lugs
(to connect fence to charger) 13.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart


BP34Bi-Polar Splicer Buckle
Black
(Joins 2 ends of tape)
3.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
BP37Bi-Polar Tensioner (2 buckles included)
Black
(New tensioner) 2 lag bolts included
11.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
BP37TThird buckle for three way BP37
For T crossing 3.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
RCLIPblRound Keeper Clip bl /12
Black 3.19 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
>

Warning:

NEVER EVER mix the 2 systems! If you already have a "traditional" fence (Mono-Polar) do NOT connect it to your new Bi-Polar fence. They are two entirely different systems. If you still want to use both systems, Use ONE fence charger for the traditional, and ANOTHER fence charger for the Bi-Polar. Also, NEVER use the metal buckles of the Mono-Polar on your new Bi-Polar fence! Never use a ground rod with your new Bi-Polar installation.
