HORSEGUARD Fence Manual
Page 27
Prev. View Cart

ALL THE BASIC ITEMS FOR MONO-POLAR FENCE

Index Next

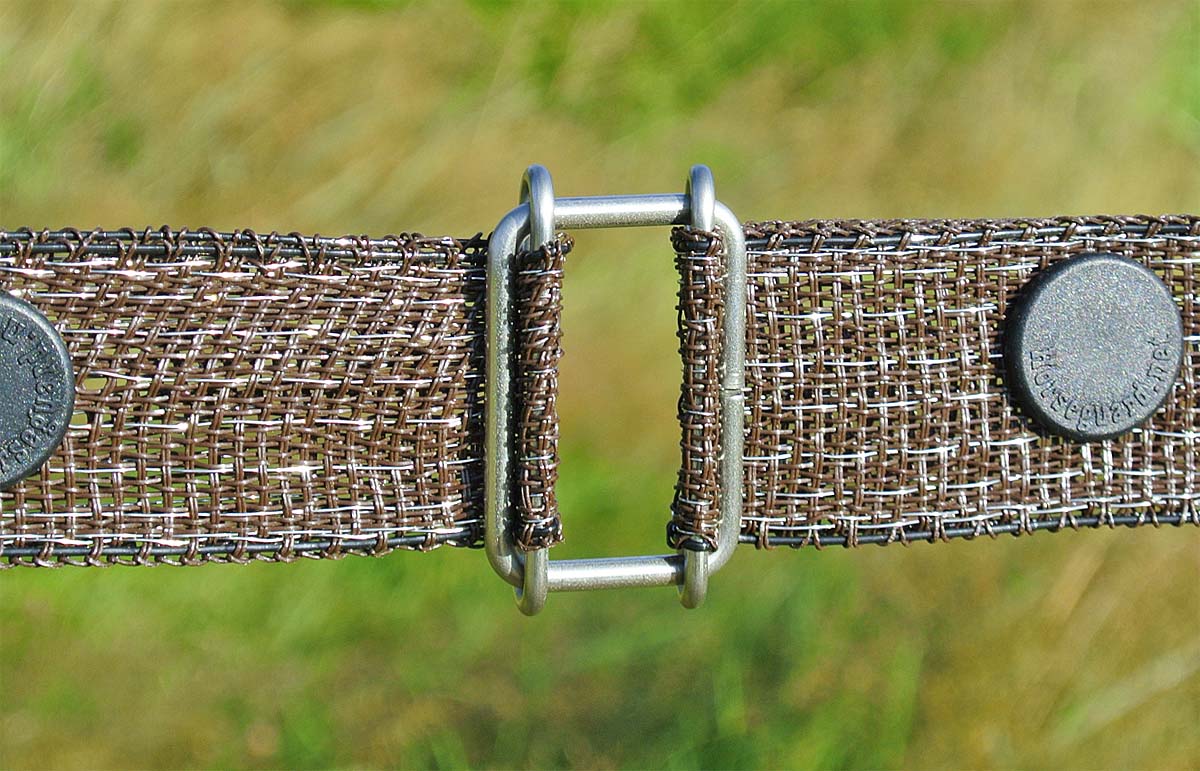

Splicer Buckle #24

It joins 2 ends of tape together, ensuring good electrical contact between all the stainless steel threads of the tape, avoiding the sparks created by voltage differences. If you notice any areas on your tape that spark, cut your tape and install a splicer buckle. Make sure you keep a couple spare splicer buckles around, so that in the event of unexpected fence breaks, the tape can be easily repaired.
The #24 allows an electrical connection anywhere on the tape, and also allows you to stretch the tape again in place
24Splicer buckle
one/spool 2.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
RCLIPblRound Keeper Clip bl /12
Black 3.19 Click here to add this product to your shopping cart Click here to add this product to your shopping cart


Keeper Clips : #CLIPbr, #CLIPwh, #CLIPgr

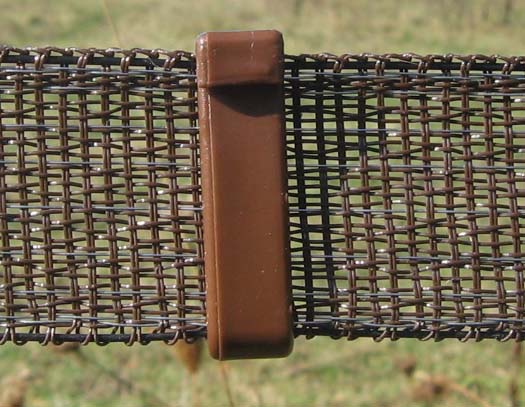

Keeper Clip (Brown)
The keeper clip holds the ends of the tape.
CLIPbrKeeper Clip br /10
Brown
4.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
CLIPwhKeeper Clip wh /10
White
4.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
CLIPgrKeeper Clip gr /10
Green
4.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
The Round Keeper Clip (Black) holds the ends of the tape. Round Keeper CLIP #CLIPbl
RCLIPblRound Keeper Clip bl /12
Black 3.19 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

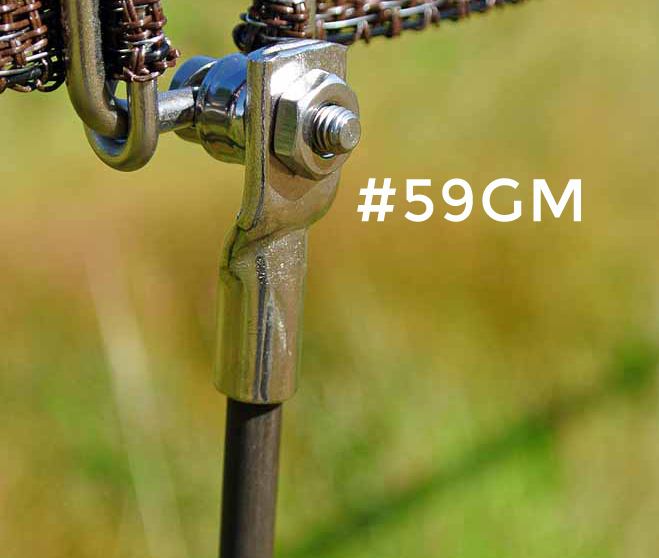

Connector #59GM


The Cable #28M + 1 connector #59GM            OR         The connector #59L

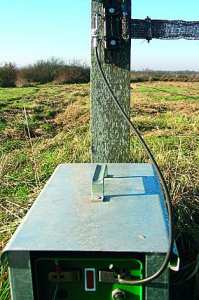

To ensure a good connection from the charger to your fence line, you need either
a 5 feet long #59L connector wire

or


order #28M cable by the foot to your desired length along with a connector #59GM.

You crimp the #59M connector onto the tensioner #36W
28MBrown H.T. Cable /ft
Brown
0.51 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
28VGreen H.T. CABLE /ft
Green
0.51 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
59L5ft Charger Connector Wire
fence to charger 6.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
59GMConnector for 28M
from buckle to wire 3.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
CRIMP59New Crimper tool
12.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

The Interconnector #59H

It transfers the power from one strand to the next.

Connectors included at each end of the #59H attach to the buckles of #36W Tensioners.

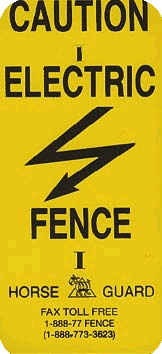

The Warning Sign #42

Electric fencing warning signs are required by law in some areas and are courteous and effective
Warning signs are required by law in some areas and are both courteous and effective in discouraging trespassers.

They should be set on post every 300 feet.
59HInter connector wire
top to bottom strand 8.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
42Warning sign
1 /spool 1.69 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

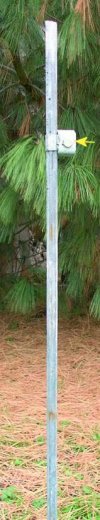

The Ground Rod #2GR5


a graound rod is  needed to connect the fence charger to earth



#2GR5
The 5 ft. galvanized ground rod comes with a clamp and is shaped to penetrate hard soil.
The ground rod connects to the negative terminal of your fence charger.



The Switch #52

Special Scissors for  electric fence tape Attached to the gate post, it turns the fence ON and OFF.
The golf ball has the big advantage of being visible from afar.


2GR5Ground Rod 5ft /2
Earthing 48.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
52Golf Ball Fence switch
off/on 23.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

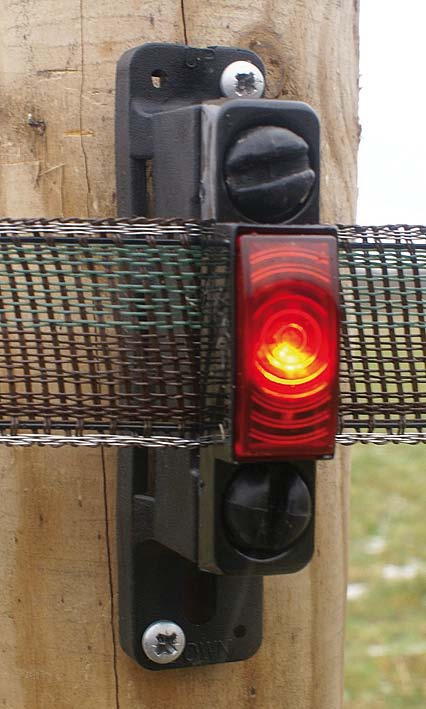

Little Light #MP15


This little flashy light is great, you can see from the house what is going on with the fence.
MP15Mono-Polar Little Light
15.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

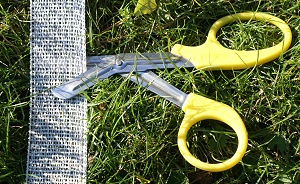

Scissors for Tape #CUT1





To cut the tape easily,
order the scissors with serrated blades.
CUT1Fence Tape Scissors
yellow 6.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
