HORSEGUARD Fence Manual

Page 32 Prev. View Cart

To Install the Tape

Index Next


THE EASIEST AND SIMPLEST WAY TO INSTALL HORSEGUARD MONO-POLAR FENCE
FROM THE BUCKLE #1 TO THE BUCKLE #2
Install one mile of HorseGuard Tape in less than 30 minutes !

Start installing all the insulators and the tensioners on the posts

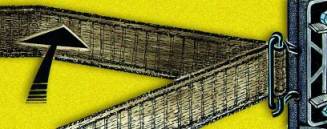

1/ Attach the tape to the buckle of the first tensioner 36W (or 36M)

Make a loop with the tape.
Push it through the buckle.
Insert the tang in the loop
Pull the end of the tape

To lock it, go again through the stainless steel buckle

Secure the tail with the clip : (the clip is located between the cap and the base of the tensioner.)
Unrolling the spool of tape:


Unrolling the spool of tape:
Unroll the tape to
the next tensioner #36W




Pull the WHOLE tape by hand
(even a mile of tape is easy to pull)
2/ Unroll the spool of tape up to the second tensioner 36W.
Pull it hard and attach it to the buckle
Set the tape
in the #36W buckle.
Pull and set the final tension of your fence from one tensioner #36W to the next #36W.
Cut the tape 8"
from the buckle
Secure the tail
with the clip



Step 3 : How to secure the tape into the new #8 insulators


1- Once it has been attached onto the post which can be wood, pipe, fiberglass or Tpost.

2- Position the tape on it.

3- Close the cap and screw in the bottom #8 peg.

4- Then firmly screw in the other #8 peg but do not over tighten.

TO TENSION AND RE-TENSION THE TAPE

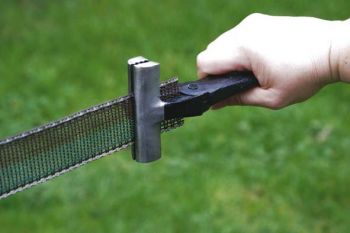

To stretch & re-stretch the tape #TSP

Once you have tried our Tape Stretching Pliers you will wonder how you could have been able to stretch the tape without them before... They really make the job so easy! But do not forget to loosen the Pegs to free the tape before pulling it with the pliers



TSPTape Stretching Pliers 15.99 Click here to add this product to your shopping cart
To loosen the Tape

Take the tail of the tape out of the buckle. Slacken the fence tape by pushing it with the palm of your hand. It will slacken all by itself.
