HORSEGUARD Fence Manual
Page 26
Prev. View Cart

ALL THE BASIC ITEMS FOR MONO-POLAR FENCE

Index Next

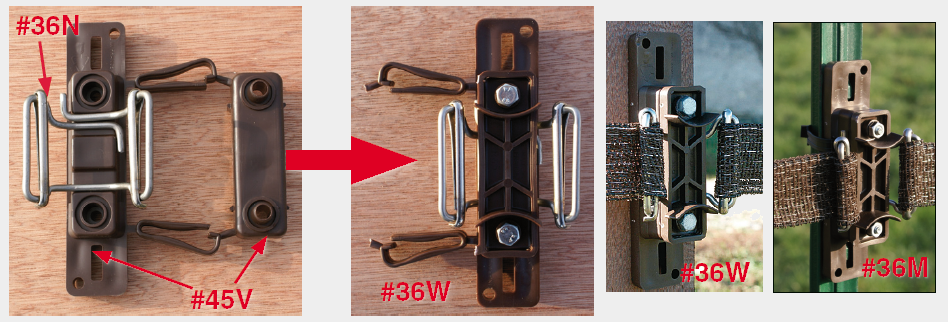

THE TENSIONER #36W & #36M



tensioner 36W 36N 45V 36M


The #36W for wood post and the #36M for metal post are the same tensioners but they come with different attachments.

It is essential to use a tensioner to set and re-adjust the tension
of the electric tape: at the end posts, at the gates,
and at the corners.


36WTensioner f wood post
for wood post 7.79 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
36MTensioner f metal post
for metal post 8.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

Advantages of setting a tensioner as a corner insulator:


  • Easier to adjust the tension of the tape from one corner to another.
  • The buckle redistributes the current at each corner so that the 10 stainless-steel wires get the same voltage.
  • The buckle #36N keeps the tape from wriggling inside the Corner Insulator and therefore prevents its deterioration.

These tensioners are not to be used with the Bi-Polar system because they would immediately short out the charger by creating a contact between the positive and the negative poles .

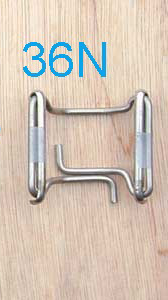

36NTensioner buckle
buckle alone 4.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart

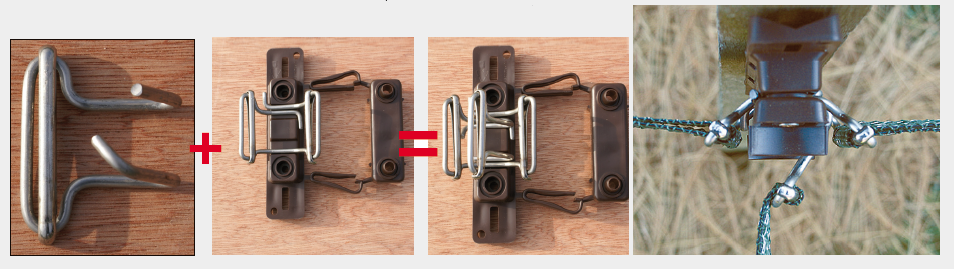

ADD A T-BUCKLE #36T TO MAKE A 3-WAY TENSIONER


#36T + 36N + 45V = 3-Way Tensioner
In order to T-off, add a T-buckle #36T to a tensioner #36 to make a 3-Way Tensioner. It will allow you the addition of a T-crossing tape, to separate a paddock in two sections.
36TT buckle
For T crossing 3.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart



THE CORNER INSULATOR #45V




If you want to save on the price of the buckle, you can use ONLY the plastic part of the #36W (= #45V + lag bolts). But once again it is better to install a #36W at every corner.

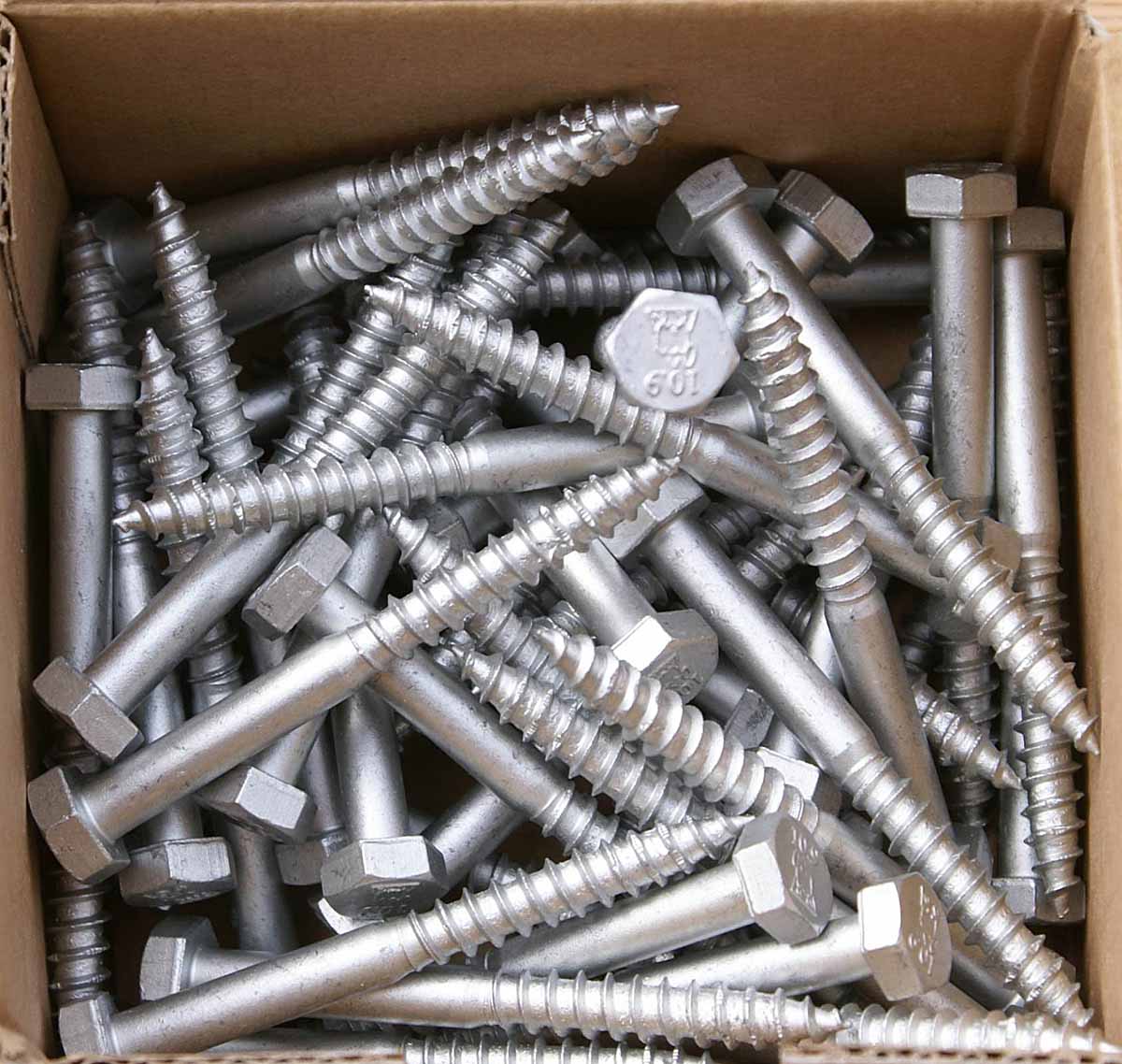

Lag Bolts #LB50



To attach the #36W or #45V or 13EX extender to a wooden post you can use:
  • - a metric 10 mm nut driver #ND10
  • - a metric 10mm socket #PIPEKEY

45VCorner insulator+lagbolts
(only Black) buckle support 2.89 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
36WTensioner f wood post
for wood post 7.79 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
ND10Nut Driver metric 10mm
2.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
PIPEKEYPipe Key Metric 10mm
1.99 Click here to add this product to your shopping cart Click here to add this product to your shopping cart
