How to attach a Bi-Polar Tensioner, a Line Insulator, a Standard Tensioner to the Horseguard New Extender #13EX25

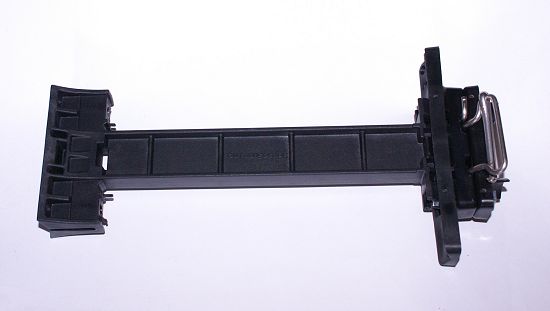

Extender +#9bl tensioner +2 locking clips

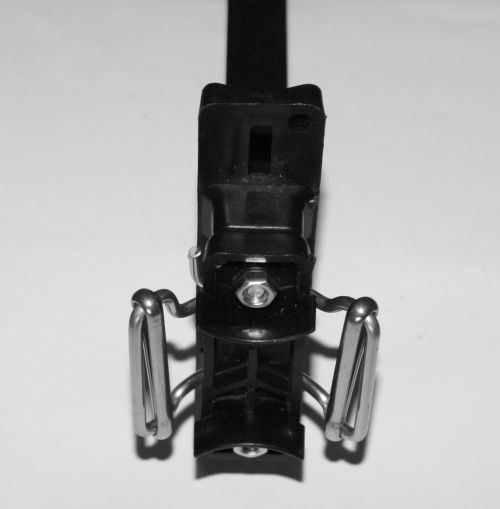

Locking clips: push them in to lock the tensioner

To set the extender

onto a T-Post you need straps #56B or wire ties #56T
on Wood post you need lagbolts #LB50
on metal post pop rivets or self taping screws or hose clamps #HC12
onto T-PostGuard sleeve wood screws.#8X

Extender +#8 insulator white, brown , green, black

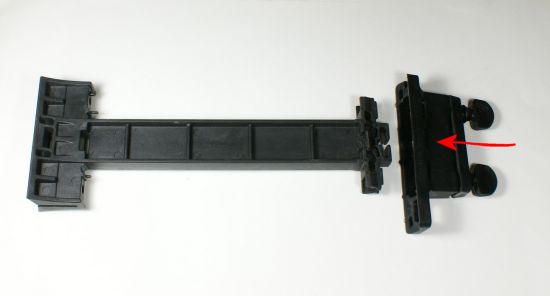

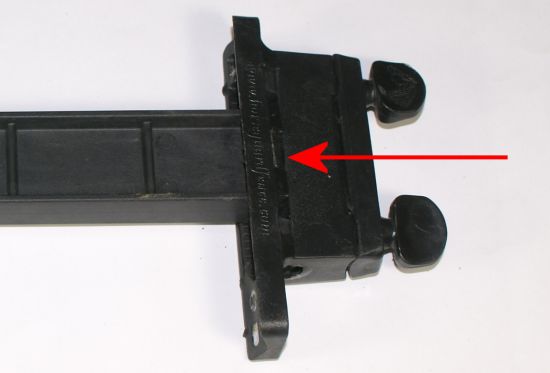

Push in the insulator to clip it onto the extender.
To remove it use a screw driver .

Extender + #45V corner insulator+ #36N buckle +2 bolts & nuts

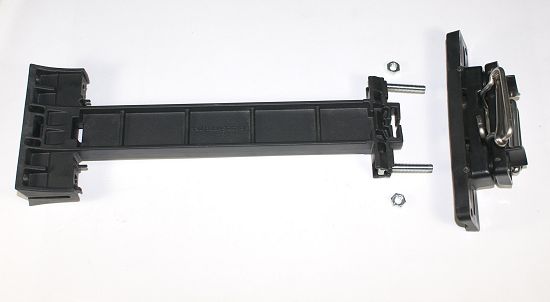

Attach the tensioner with 2 bolts & nuts

To set the extender

onto a T-Post you need straps #56B or wire ties #56T
on Wood post you need lagbolts #LB50
on metal post pop rivets or self taping screws or hose clamps #HC12
onto T-PostGuard sleeve wood screws.#8X

Download the printable "How to..." as a PDF file here.
