How to use the "Coleman" stripper/crimper tool.

Crimper tool #CRIMP59

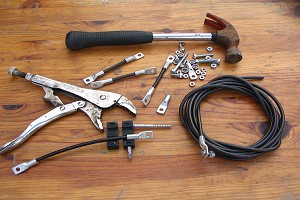

You need a Vise-Grip pliers, a hammer and a wood block .

Starter Kit #SK59

Insert the end of the cable into the round cable stripper opening. Close the two sides of the crimper with the Vise-Grip pliers.	Hit the crimper with a hammer against a wood block until both sides of the crimper meet. Pull off the cable insulation that has been cut.

Fold the exposed wire strands over the cable insulation and insert the terminal over them.	Set the terminal into the hexagonal form on the crimper, put the top and hit it HARD with the hammer!

The terminal is now hexagonal, you have done it like a pro! Now you can do all your jumpers the size you need !

To make this crimper even more handy we have designed two extra hexagon shaped openings. The larger hexagon openings can be used to tighten our lag bolts used in items #36W and #45V. The smaller opening can be used for the screw bit that is included with our #8X screws. Please note lag bolts and the screw bit are NOT included with the #CRIMP59 crimper tool and #SK59 crimper kit.
