Installing the #36W Tensioner




Now it's easy to build or adjust the tension of your tape!!

Use the TENSIONER #36W everytime you interrupt the tape (at doors, corners, ends of the fence, etc.)
The #36W is preferrable in all corners because it not only allows you to create tension at each section of tape individually, but the stainless buckle re-connects all 10 wires together and therefore avoids sparks due to differences in voltage (if any) among the 10 conductive wires.

In each #36W bag we provide all necessary attachments:
  • -2 Lag bolts for wood posts
  • -2 Self taping screws for metal posts
  • -2 straps for T-post
  • -2 Bolts & nuts to secure the tensioner if you want to wire it to any difficult post.

After 15 years of changes and improvements, we are proud to say that we have come up with the ultimate tensioner that is both efficient and simple to use...
You'll love it !
Horseguard



HOW TO INSTALL THE TENSIONER #36W

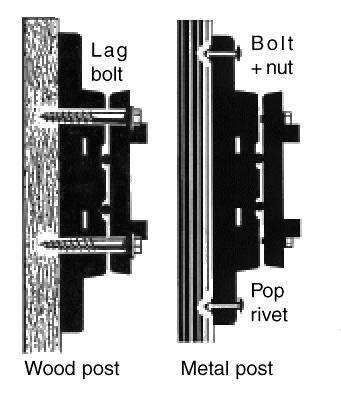

On wood or metal posts.

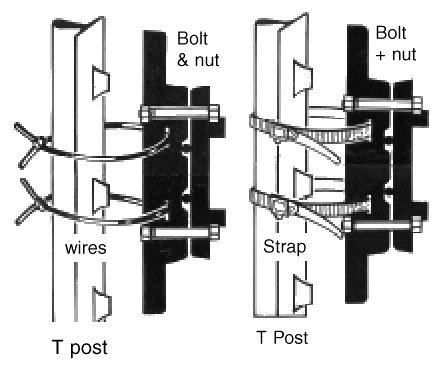

On T-posts.

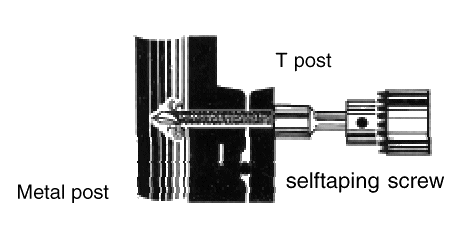

On all metal posts you can use selftaping screws.

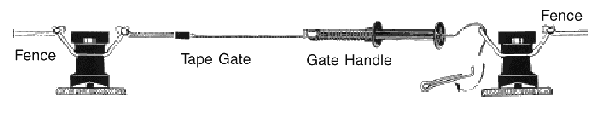

Make easy and safe gates with a gate handle.

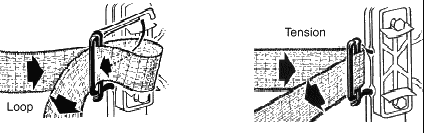

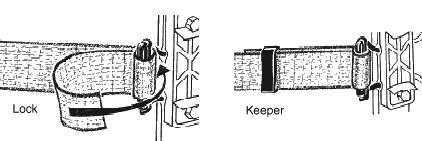

HOW TO TIGHTEN OR LOOSEN THE TAPE
